Hagans Plastics Co., Inc. is a custom thermoformer and injection molder that provides high quality parts while offering first class service for a variety of industries.

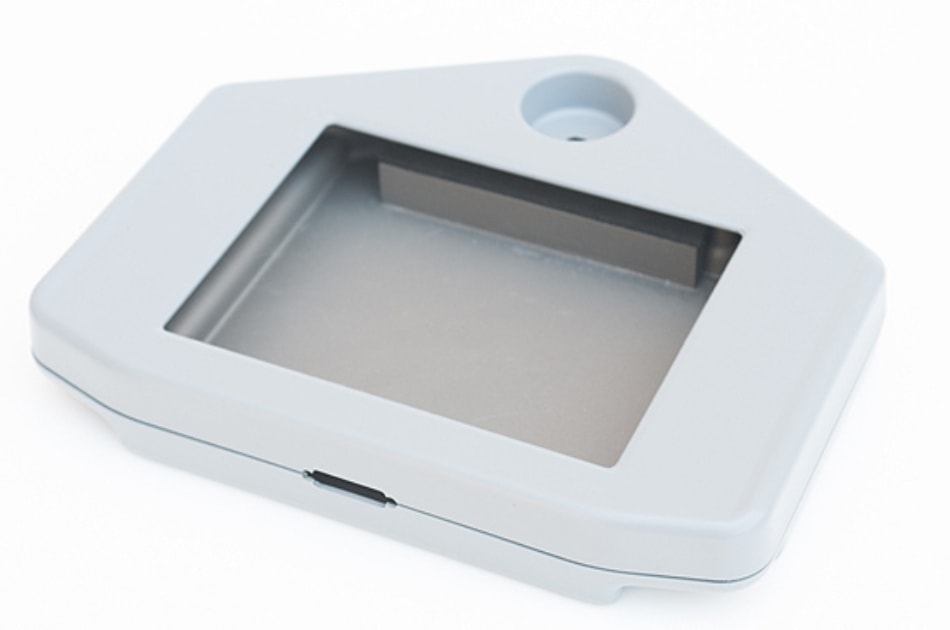

The project highlighted here was an electronic enclosure with EMI shielding designed for use in electrical testing. The customer supplied a 2D CAD drawing, and the part went through four complete design changes with small production runs done on each of the designs. When the final design was qualified, injection mold tooling was built with the use of advanced thermoforming equipment.
A 5-axis CNC router was also used to provide extensive secondary machining and finishing. With the rigidity and formability of acrylic and the toughness and chemical resistance of PVC, KYDEX® was used to make the part, and a standard finish was applied. State-of-the-art thermoforming and CNC machines were used to achieve the 9.00″ by 11.00″ by 2.00″ dimensions. *This project is an excellent example of how thermoforming can be used for proof a concept.
All work at Hagans Plastics is of the highest quality and done to AS9100 and ISO 9001 industry standards. To see how we can provide comprehensive solutions to critical thermoforming issues, contact us.
Thermoforming of an Electronic Enclosure for Electrical Industry Project Highlights
| Product Description | Electronic Enclosure |
| Capabilities Applied/ Processes | Primary: Thermoforming Secondary: 5-axis CNC router |
| Equipment Used to Manufacture Part | Thermoformer |
| Expertise | Extensive secondary machining and finishing |
| Overall Part Dimensions | 9.00 x 11.00 x 2.00 |
| Material Used | KYDEX® |
| Material Finish | Standard Finish |
| Industry for Use | Electrical Testing |
| Volume | Proof of Concept |
| Standards Met | Customer Specifications, 2D CAD Drawing |
| Product Name | Enclosure |
| Additional Facts | EMI shielding |
